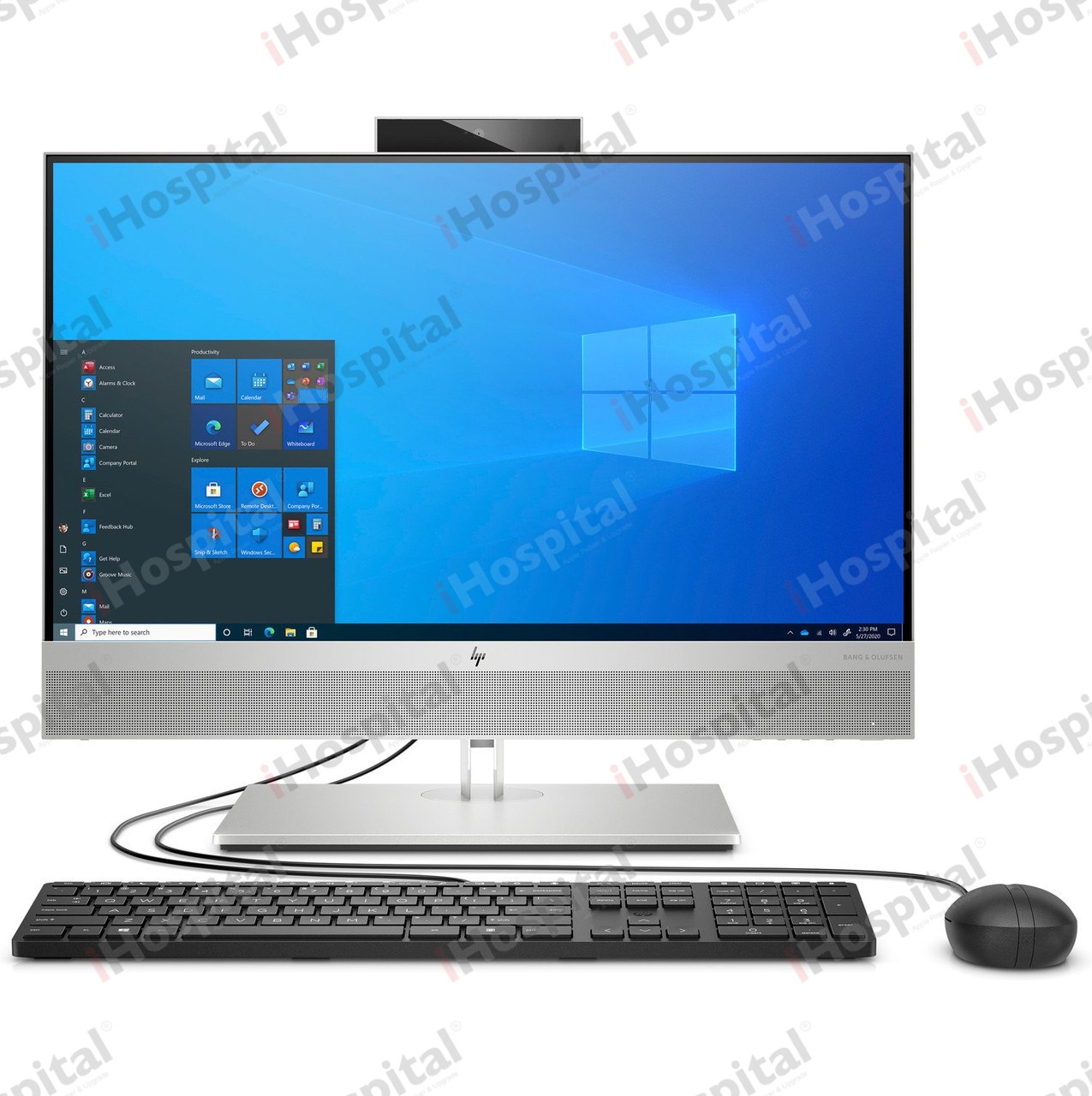

HP EliteOne 800 G6 AIO 27 Inches i9-10900 – 16GB RAM, 512GB SSD

Operating systems

Preinstalled (Windows)Windows 10 Pro 64 (recommended by HP)

Processors

Intel Core i9-10900 Processor 1.50 GHz Base frequency, up to 5.2 GHz maximum turbo frequency with Intel Turbo Boost

20 MB cache, 10 cores, and 20 threads

Intel UHD Graphics 630

Supports Intel vPro Technology and Intel Stable Image Platform Program (SIPP)

Memory

16GB RAM Number of slots: (2) SODIMM (customer accessible / upgradeable)

Graphics

Integrated Intel UHD Graphics 630 (for 10th gen Core i9/i7/i5/i3 processors and Pentium Gold G6600 and G6500)

Intel UHD Graphics 610 (for Pentium Gold G6400)

CAMERA 3.0M

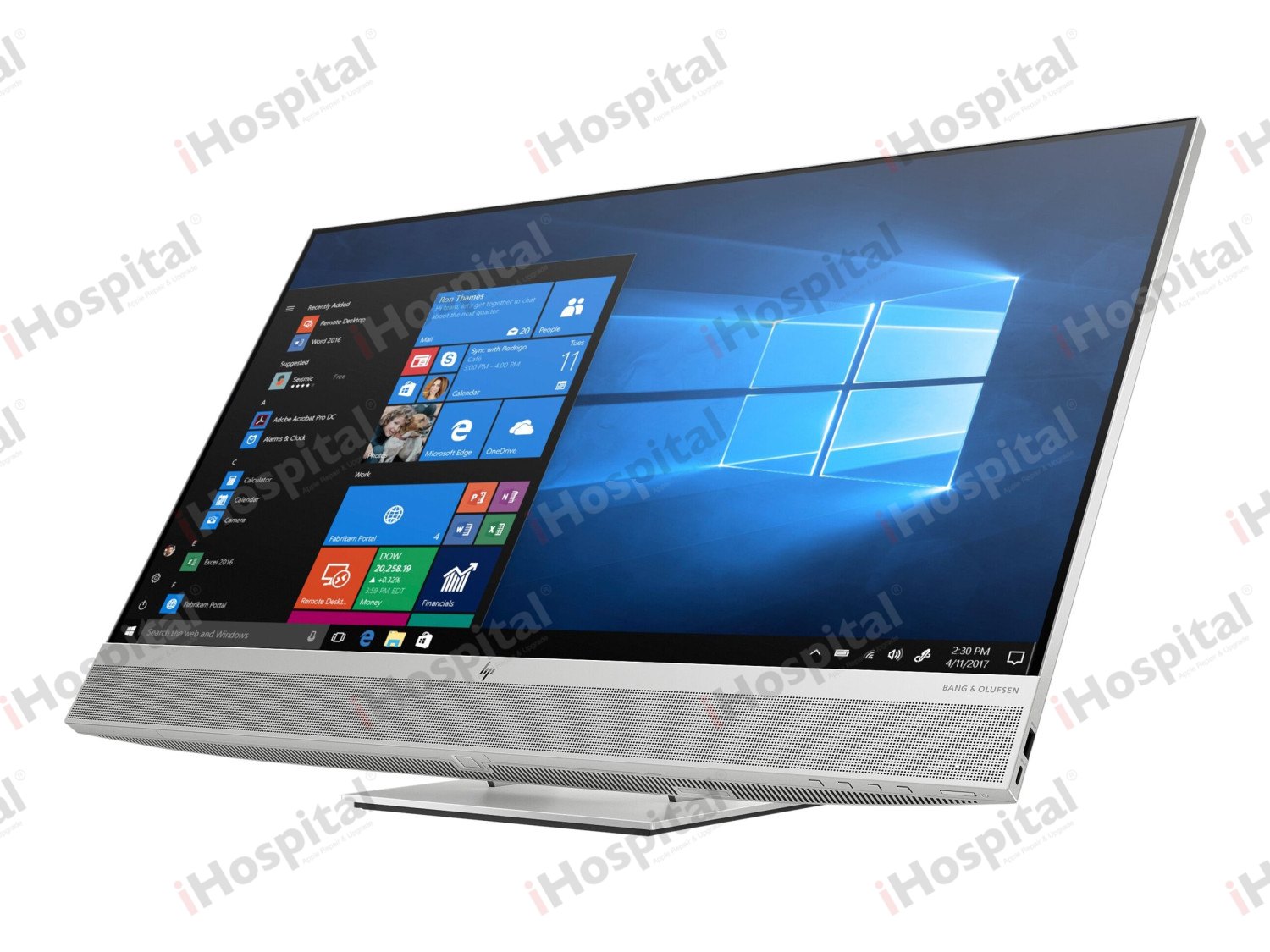

Display

27.0 in Display panel options  68.58 (27.0) diagonal IPS widescreen WLED backlit anti-glare LCD (1920 x 1080) non-touch

note:

Supports low blue light feature.

68.58 (27.0) diagonal IPS widescreen WLED backlit anti-glare LCD (2560 x 1440) touch

note:

Storage

Solid State Drives (SSD) 512 GB M.2 2280 PCIe NVMe TLC SSD

Media card reader SD 4.0 with 5-in-1 Interface

Supports SD, SDXC, SDHC, UHS-I, and UHS-II

Networking/communications

Ethernet (RJ-45) Intel I219-LM Gigabit Network Connection LOM (standard)

note:

The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

Wireless Intel Wi-Fi 6 AX201 802.11ax (2x2) with Bluetooth M.2 Combo Card vPro

Intel Wi-Fi 6 AX201 802.11ax (2x2) with Bluetooth M.2 Combo Card non-vPro

Realtek RTL8822CE 802.11ac (2x2) with Bluetooth M.2 Combo Card

note:

Wi-Fi 6 is backwards compatible with prior 802.11 specs.



Wireless access point and internet service is required and is not included. Availability of public wireless access points limited. The specifications for the 802.11 WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it might affect the ability of the notebook to communicate with other 802.11 WLAN devices.

Audio/multimedia

High Definition Audio Integrated Realtek ALC3274

(1) 3.5 mm Headset connector supports an OMTP or CTIA style headset and is re-taskable as a Line-in, Line-out, microphone-in or headphone-out port

5 W per channel class D mono amplifier (for internal speakers only)

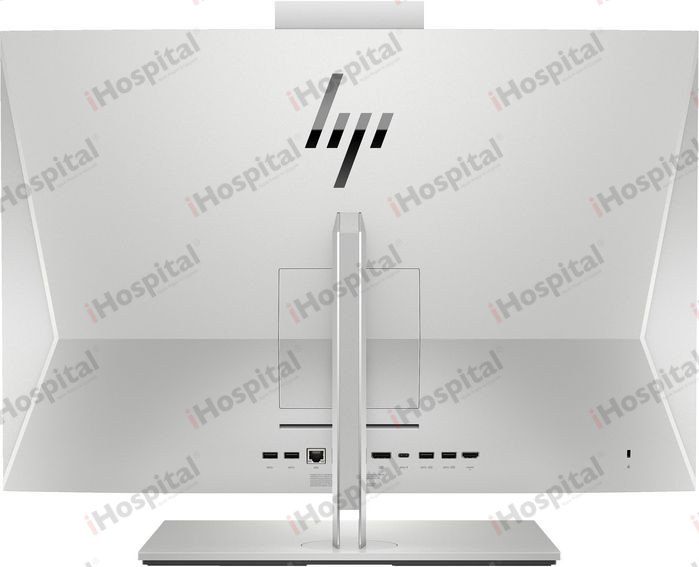

Ports/bays/buttons

Ports (2) USB 3.2 Gen 1 Type-A ports (rear) 5 Gbps signaling rate

(2) USB 3.2 Gen 2 Type-A port (rear) 10 Gbps signaling rate

(1) USB 3.2 Gen 2 Type-A port (side) 10 Gbps signaling rate

(1) USB 3.2 Gen 2 Type-C port (rear) 10 Gbps signaling rate

(1) USB 3.2 Gen 2 Type-C port (side) 10 Gbps signaling rate

(1) RJ-45 (network) connector (rear)

(1) Microphone/headphone combo jack (side) CTIA and OMTP headset support

(2) Internal M.2 PCIe x4 2280 (for storage)

(1) Internal M.2 PCIe x1 2230 (for WLAN)

For models with integrated graphics

(1) DisplayPort 1.4 port (rear)

(1) USB Type-C with alt mode display or 15 W output (rear)

(1) HDMI-input (rear)

For models with discrete graphics

Power

80 PLUS Platinum 210 W active PFC

280 W active PFC

90/92/89% efficient at 20/50/100% load (115V)

91/93/90% efficient at 20/50/100% load (230V)

note:

Availability might vary by country/region.

Physical specifications

Dimensions (W x D x H) without stand For 27 in models (QHD)

613.6 x 405.57 x 58.7 mm (24.12 x 15.97 x 2.31 in)

For 27 in models (FHD)

613.6 x 405.57 x 59.07 mm (24.12 x 15.97 x 2.33 in)

Weight For 27 in models (with touch panel)

8.87 kg (19.55 lb)

For 27 in models (without touch panel)

8.07 kg (17.79 lb)
