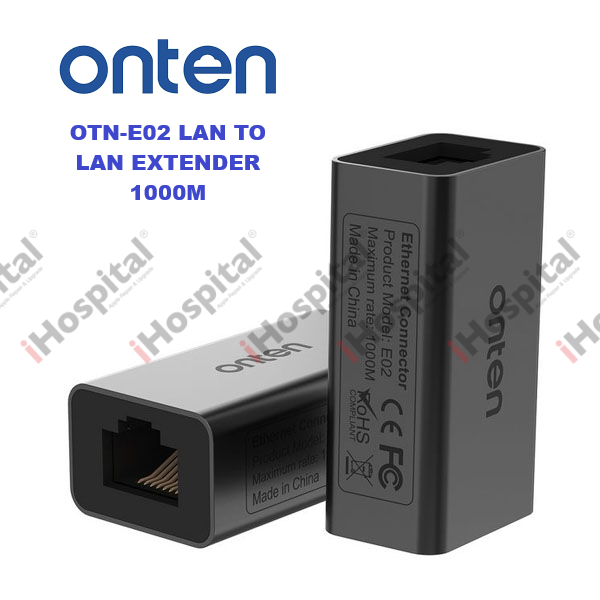

Onten OTN-E02 Gigabit Ethernet RJ45 LAN to LAN Extender (1000Mbps)

Onten OTN-E02 is not a long-range active line booster, but rather a premium inline RJ45 barrel coupler designed to join two shorter Ethernet cables together. The "1000M" designation in its name stands for its capability to support 1000 Mbps (1 Gigabit per second) Gigabit Ethernet speeds, rather than a 1,000-meter physical distance limit

• Connection Interface: Dual RJ45 female-to-female ports (RJ45 x 2).
• Maximum Network Speed: Up to 1000 Mbps (1 Gbps), with full backward compatibility for 100 Mbps and 10 Mbps configurations.
• Cable Compatibility: Fully shielded (FTP) and structurally compatible with Cat8, Cat7, Cat6, and Cat5e networking standards.
• Premium Enclosure: Constructed using a durable mix of aluminum alloy and ABS plastic for optimal structural integrity and heat dissipation.
• Form Factor: Very compact profile measuring 43.4 x 29.8 x 16.5 mm.

Critical Distance Limitation Note

Because the Onten OTN-E02 is a passive coupler (it does not feature active signal amplification circuitry), it remains strictly bound to standard copper Ethernet length limitations.

The 100-Meter Rule: Your total aggregated line cable length (Cable A + Cable B) cannot exceed 100 meters (328 feet). Exceeding this collective length threshold will result in severe packet loss, intermittent connection failures, or complete signal dropouts.

What to do if you actually need a 1000M (1 Kilometer) Extension?

If your implementation truly requires bridging a physical link spanning up to 1,000 meters, a simple passive coupler will not function. Instead, look into these alternative enterprise solutions:

• Active Ethernet-over-2-Wire/Coax Extenders: Specialized hardware links (such as those offered by brands like ONTEN) utilize advanced modulation technologies to push data streams over legacy telephone wire or coaxial lines up to 1,000 meters.
• Fiber Optic Media Converters: Transitioning your run to fiber optic cabling easily clears a 1,000-meter span while maintaining full line-rate speeds.
