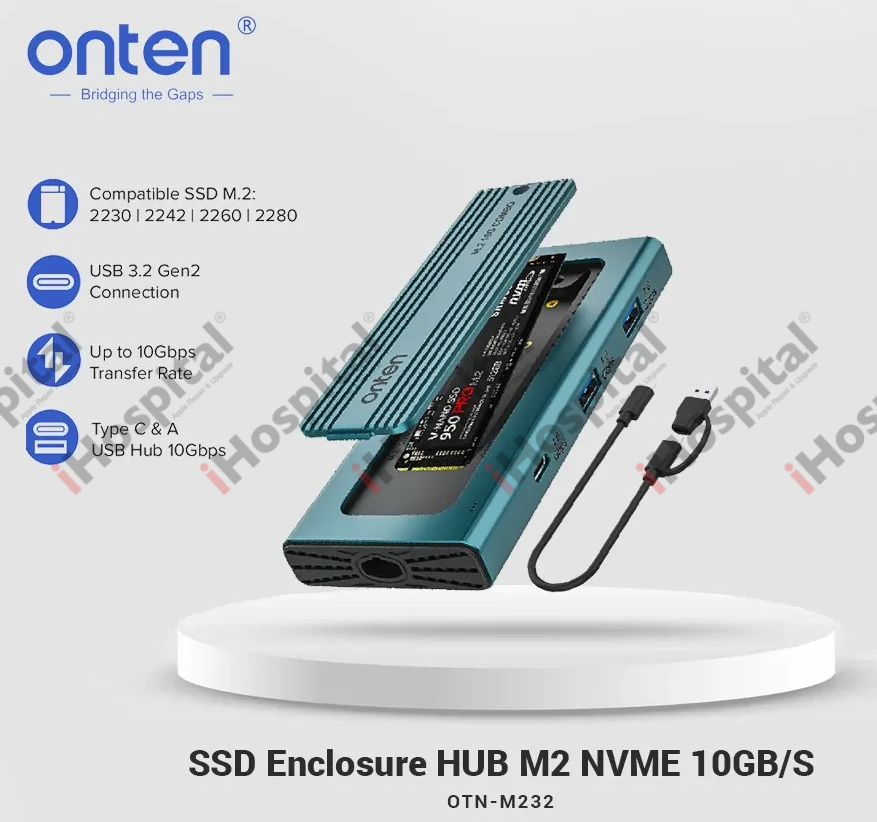

Onten OTN-M232 M.2 NVMe/SATA SSD Enclosure & USB 3.2 Gen 2 Hub – 4-in-1

Onten OTN-M232 is a 4-in-1 multi-function USB-C hub and external M.2 SSD enclosure. It allows you to expand your device's ports while simultaneously adding high-speed external storage through a single connection

Key Specifications

Specification Details

Uplink (Host Interface)

USB Type-C

Data Transfer Speed

Up to 10Gbps (USB 3.2 Gen 2)

Downlink Ports

2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C

M.2 SSD Support

Dual-protocol (Supports both NVMe PCIe and SATA NGFF protocols)

SSD Key Compatibility

M-Key, B+M Key

SSD Sizes Supported

2230, 2242, 2260, and 2280

Enclosure Material

Premium aluminum alloy for passive cooling

Installation

Tool-free sliding design

Core Features & Benefits

• All-in-One Utility: It eliminates the need to carry both a portable SSD and a separate USB hub.
• 10Gbps Blazing Speeds: All expanded USB ports and the internal M.2 slot share a 10Gbps pipeline. This allows real-world file transfers to reach up to ~1,000 MB/s depending on your SSD.
• Broad SSD Compatibility: You can repurpose almost any spare M.2 drive since it handles both NVMe and older SATA M.2 drives up to 4TB–8TB.
• Toolless Setup: The sliding cover mechanism allows you to swap or install hard drives in seconds without looking for a screwdriver.
• Thermal Management: The metal casing acts as a heatsink to dissipate heat during sustained heavy workloads like video editing or large backups.

⚠️ Important Usage Notes

• Power Constraints: The downlink USB-C port is for data transfer only. It does not support Power Delivery (PD) passthrough to charge your laptop.
• Shared Bandwidth: If you connect multiple high-speed devices (like external drives) to the hub ports while transferring data from the internal SSD, they will share the overall 10Gbps bandwidth
