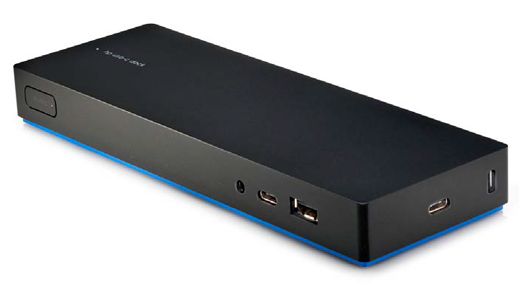

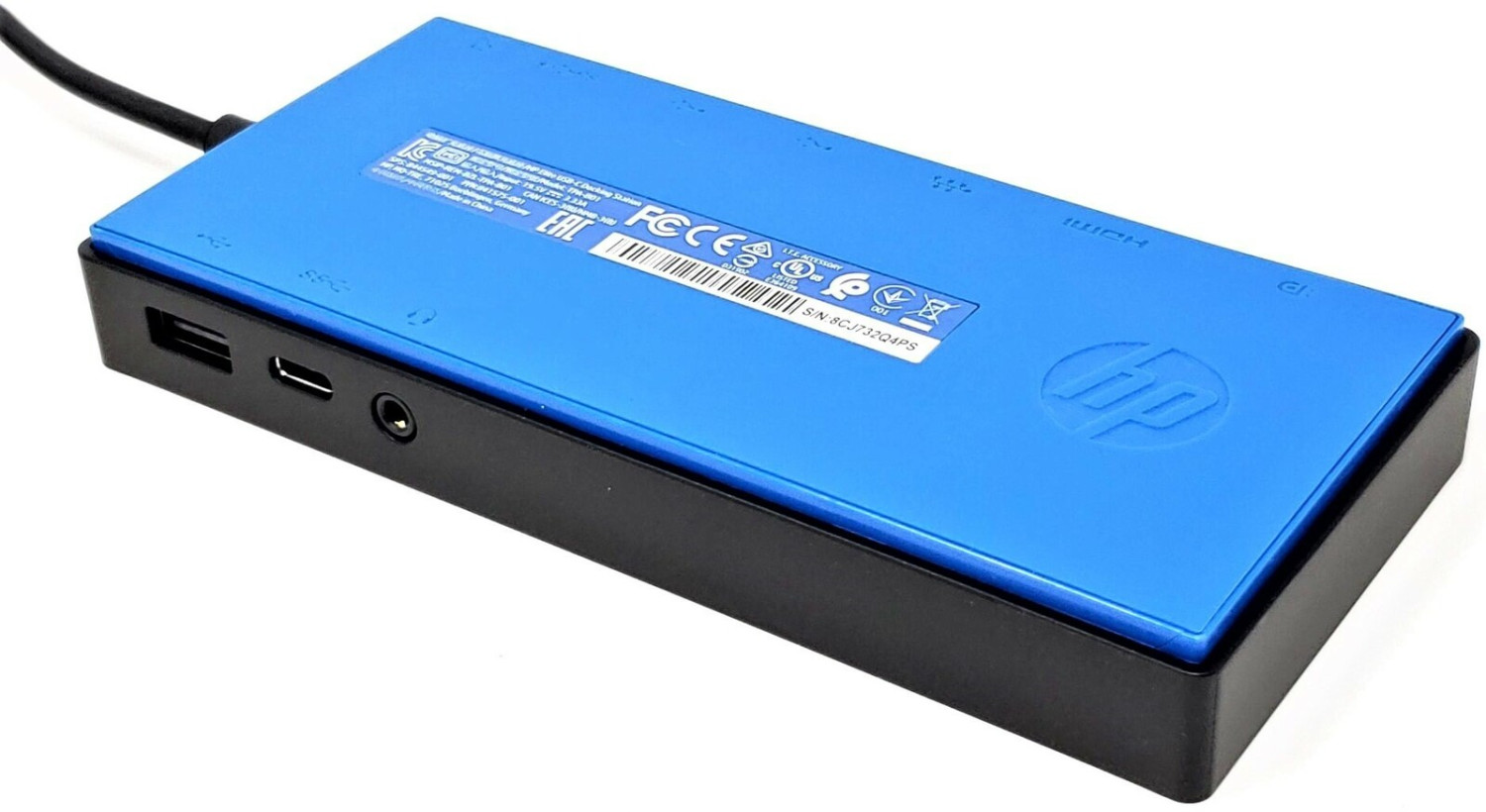

T3V74AA#ABA HP Elite USB-C Docking Station (Refurb)

Resolution

Single display

Up to 4096 x 2160 at 60 Hz

Dual display

Up to 2560 x 1600 at 60 Hz

Triple display

Up to 1920 x 1200 at 60 Hz

NOTE:

Higher resolutions at 60 Hz supported using the “Hi-Res” button to enable 4-lane DisplayPort mode.

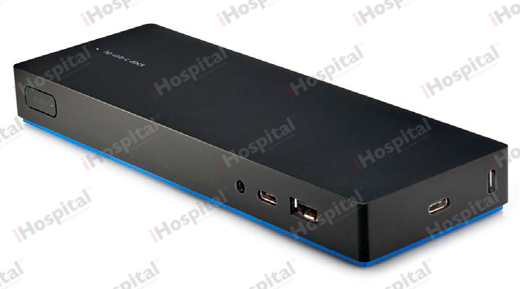

Front components

(1) USB 3.0 port1

(1) USB-C port1 (connects to other peripherals)

(1) Audio jack combo (connects to headphone)

(1) Hi-Res button with LED backlight (supports higher display resolutions)

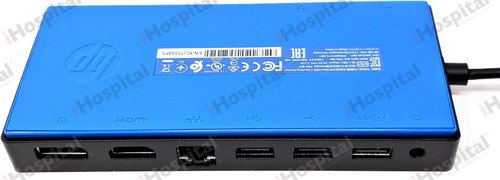

Side/rear components

(1) Smart AC adapter

(1) Powered USB 3.0 port1

(2) USB 2.0 ports

(1) USB-C port2 (connects to computers)

(1) Gigabit Ethernet port1

(1) HDMI 2.0 port

(2) DisplayPort (DP) ports

(1) Kensington lock slot

Network manageability features

Wake on Lan (from the Off, Sleep or Hibernation states or only when the computer is on or in sleep)

MAC Address Pass Through (from the On, Off, Sleep or Hibernation states or only when the computer is on or in sleep)

PXE boot

WLAN – LAN switching (only on computers running Windows 10)

Normal operating power

90 W

Average operating power

65 W

Maximum operating power

100 W

Power Delivery (PD) profile

USB-C PD 3.0 supporting 5 V/3 A, 9 V/3 A,10 V/3 A, 12 V/3 A, 15 V/3 A and 20 V/3 A

Temperature (operating)

0° to 40° C (32° to 104° F)

Relative humidity (operating)

0 to 90%

Altitude (operating)

3,048 m (10,000 ft)

Shock (operating)

40 G, 2 ms duration, half-sine wave shock

Random vibration (operating)

1.043 grms
